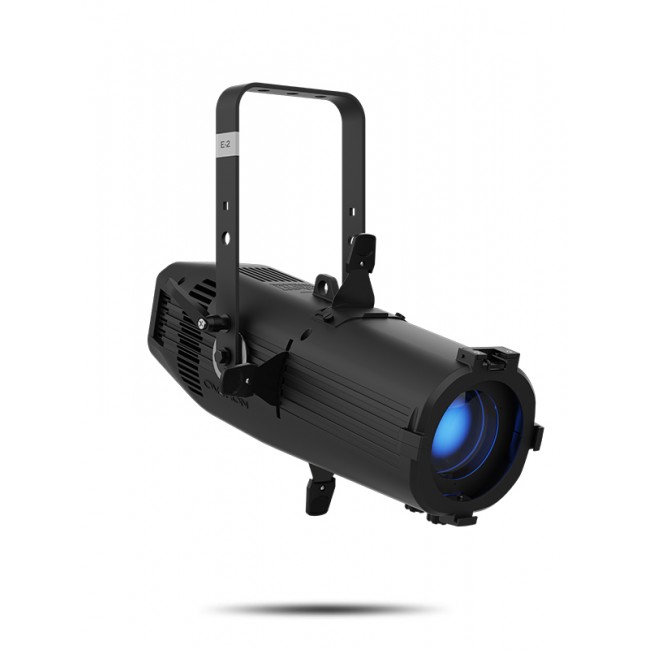

Chauvet Ovation E-2 FC compact LED Ellipsoidal spotlight

Ovation E-2 FC

Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation color mixing system produces exceptionally high CRI output that can be smoothly sized with an integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.

Specifications

Optical

  • Light Source: 72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 4525 K
  • CRI (3200 K): 93
  • Beam Angle Spot: 23.8°
  • Beam Angle Flood: 46.4°
  • Beam Angle 50% Zoom: 38.7°
  • Field Angle Spot: 25.6°
  • Field Angle Flood: 51°
  • Field Angle 50% Zoom: 41.3°
  • Cutoff Angle Spot: 24.9°
  • Cutoff Angle Flood: 51.8°
  • Cutoff Angle 50% Zoom: 41.9°
  • Zoom Range: 23.8° to 51.8°
  • Lumens (Spot) : 3708 lm
  • Lumens (Flood) : 5608 lm
  • Lumens (50% Zoom) : 5147 lm
  • Illuminance (Spot) : 1107 lux @ 5 m
  • Illuminance (Flood) : 488 lux @ 5 m
  • Illuminance (50% Zoom) : 595 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz


Dynamic Effects

  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Focus: Manual
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes


Construction / Physical

  • Dimensions: 18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm)
  • Weight: 14.8 lb (6.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
  • Gobo Size (Optional): “M”: 66 mm (outside), 48 mm (image), 2 mm (max. thickness)


Connections

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB


Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
  • Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV)


Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
  • Power and Current: 208 W, 1.71 A @ 120 V, 60 Hz
  • Power and Current: 219 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: 220 W, 0.98 A @ 230 V, 50 Hz


Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


What's Included

  • Ovation E-2FC
  • Seetronic Powerkon power cord
  • Ovation Metal Gobo Holder (“M” Size)
  • Soft Focus Filter
  • Quick Reference Guide or User Manual


Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Ovation E-2 Iris (Model: OVE2IRIS)
  • Seetronic Powerkon power linking cables
  • 5-pin DMX Cables


ORDERING INFO

  • Item Code: 03121951
