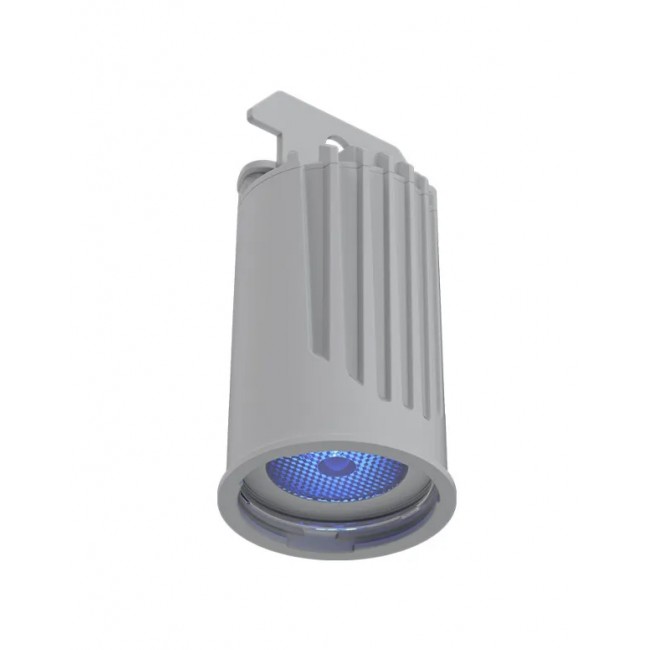

Chauvet Logic MR16 Downlight-small
Light Source and Optical Specifications
- Light Source: 1 LED (quad-color RGBW) 10 W, (4.375 A)
- Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
- Installed Optics: Medium Filter
- Included Optics: Wide Filter
- Beam Angle: Standard Optics: 30.9°, Medium Filter: 40.4°, Medium Filter With Honeycomb: 33.6°, Wide Filter: 41.8°, Wide Filter With Honeycomb: 34.2°
- Field Angle: Standard Optics: 59.7°, Medium Filter: 81.7°, Medium Filter With Honeycomb: 63.9°, Wide Filter: 105.5°, Wide Filter With Honeycomb: 64.3°
- Cutoff Angle: Standard Optics: 82.8°, Medium Filter: 148.9°, Medium Filter With Honeycomb: 84.7°, Wide Filter: 154.3°, Wide Filter With Honeycomb: 90°
- Lumens: Standard Optics: 266, Medium Filter: 194, Medium Filter With Honeycomb: 98.3, Wide Filter: 182, Wide Filter With Honeycomb: 83.1
- Iluminance: Standard Optics: 29 lux @ 5 m, Medium Filter: 11 lux @ 5 m, Medium Filter With Honeycomb: 9 lux @ 5 m, Wide Filter: 8 lux @ 5 m, Wide Filter With Honeycomb: 8 lux @ 5 m
- Efficacy At Full: Standard Optics: 32 lm / W, Medium Filter: 23 lm / W, Medium Filter With Honeycomb: 12 lm / W, Wide Filter: 22 lm / W, Wide Filter With Honeycomb: 10 lm / W
- Color Temperature Presets: 1800K - 10000K
Construction & Physical Specifications
- Dimensions: 1.96 x 1.96 x 3.86 in (50 x 50 x 98.10 mm)
- Fixture Color: White
- Housing Material: Aluminum (ADC12)
- Lens Cover: Frosted polycarbonate
- Mounting Options: Logic MR16 Trim Ring, Logic MR16 Mounting Kit
- Weight: 0.39 lb (0.18 kg)
Control Specifications
- Operating Modes: Selectable personalities, via Logic Drive 2X and POEX
- Personalities:
- Red (1-channel): Red
- Green (1-channel): Green
- Blue (1-channel): Blue
- White (1-channel): White
- TW (2-channel): Dimmer, White CCT Preset
- RGB (3-channel): Red, Green, Blue
- RGBW (4-channel): Red, Green, Blue, White
- RGBW+D (5-channel): Red, Green, Blue, White, Dimmer
- FULL (10-channel): Dimmer, Red, Green, Blue, White, White CCT Presets, Strobe, Auto Programs, Dimmer Speed Presets
- Fixture Setup: Logic Drive 2X and POEX (RDM, webserver or display), Art-RDM (DMX Workshop)
- Standalone Control: Yes, Logic Wall Con via Logic Drive 2X and POEX
Electrical System Specifications
- Electronic
- Input Voltage: 52 VDC, DMX/RDM (via Logic POEX)
- Power and Current:
- Power Linking: 8 units via Logic POEX
- Power Supply: Logic POEX (52 VDC)
- Recommended Power Cable: Belden 2413F, 2412F
- Required Cable Specifications: Cable type: CAT6/A, Shielded, Conductor Diameter: ≥23 AWG (≥0.5733 mm), Conductor Material: Solid Bare Copper Wire (stranded not supported), Cable plug: RJ45, CAT6/A, Shielded, Cable Terminator: T568B standard
- Total Max Cable Length: Drive to POE.X: ≤100 m / 328 ft, POE.X to first fixture: ≤15.24 m / 50 ft, First fixture to last fixture: ≤46m / 150 ft, Drive to last fixture: ≤145 m / 475 ft
Thermal Specifications
- BTU Hour: 8.3
- Cooling: Convection
- Maximum Surface Temperature: 158 °F (70 °C)
- Minimum Distance To Flammable Surface: 11.8 in (0.3 m)
- Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Regulatory & Voluntary Qualification
- Canadian Safety: CSA-C22.2 No. 250.2
- Certification Listings: CE/MET/FCC/RoHS
- City of Chicago Electric Code Safety: Chicago Plenum (CCEA), Section 18-27-300.22(c)(2)
- Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
- Environment Locations: Dry
- Installation Orientation: Any
- US Safety: UL 2108, UL 1598A
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Accessories
- Included:
- Wide filter
- Pendant hanging bracket
- Optional:
- Logic MR16 Honeycomb filter
- Logic MR16 Trim Ring (white)
- Required:
- Logic Drive 2X
- Logic POEX
Order Code
- Logic MR16 Downlight-small: LOGICMR16DNS
- Logic Drive 2X: LOGICDRIVE2X
- Logic POE X Power Data Adapter: LOGICPOEX
- Logic M16 Honeycomb Filter: LOGICMR16HF
- Logic MR16 Trim Ring: LOGICMR16TRIM
- Logic Wall Controller: LOGICWALLCON
