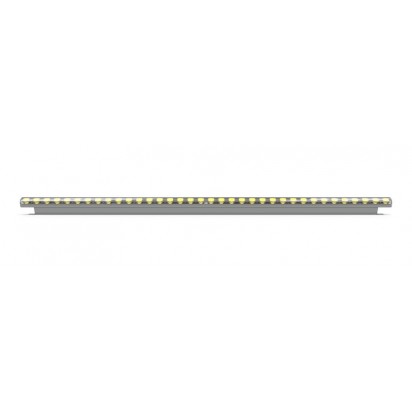

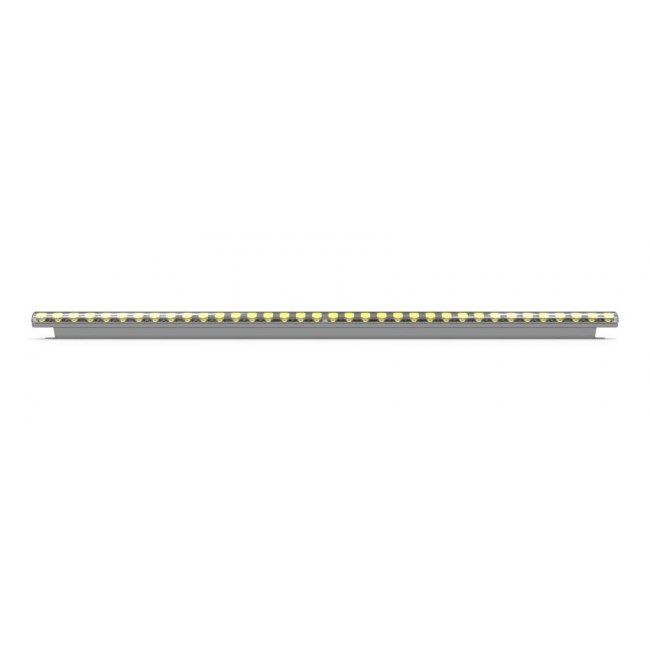

Chauvet Logic Graze-large length-4ft / 1219mm
Light Source and Optical Specifications
- Light Source: 36 LED (quad-color RGBW) 2.5 W, (870 mA)
- Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
- Installed Optics: Medium Filter
- Included Optics: Very Wide Filter
- Beam Angle: Open Optics: 125.3° (Horizontal), 124.8° (Vertical), Medium Optics: 41.1° (Horizontal), 28.6° (Vertical), Very Wide Filter: 51.5° (Horizontal), 47° (Vertical)
- Field Angle: Open Optics: 147.8° (Horizontal), 169.1° (Vertical), Medium Optics: 82.7° (Horizontal), 59.3° (Vertical), Very Wide Filter: 153.8° (Horizontal), 168.7° (Vertical)
- Cutoff Angle: Open Optics: 262.4°, Medium Optics: 137.6°, Very Wide Filter: 231.3°
- Lumens: Open Optics: 3,267, Medium Optics: 2,692, Very Wide Filter: 2,059
- Iluminance: Open Optics: 39 lux @ 5 m, Medium Optics: 171 lux @ 5 m, 44 lux @ 5 m
- Efficacy At Full: Open Optics: 66 lm / W, Medium Optics: 54 lm / W, Very Wide Filter: 41 lm / W
- Color Temperature Presets: 1800K - 10000K
Construction & Physical Specifications
- Dimensions: 47.99 x 1.37 x 2.36 in (1,219 x 35 x 60 mm)
- Fixture Color: White
- Housing Material: Aluminum (ADC12)
- Lens Cover: Clear polycarbonate
- Mounting Options: Integrated mounting bracket, 0.827 x 240 in (21 x 6.10 mm) bracket holes
- Weight: 4.19 lb (1.9 kg)
Control Specifications
- Operating Modes: Selectable personalities, via Logic Drive 2X
- Personalities:
- Red (1-channel): Red
- Green (1-channel): Green
- Blue (1-channel): Blue
- White (1-channel): White
- TW (2-channel): Dimmer, White CCT Preset
- RGB (3-channel): Red, Green, Blue
- RGBW (4-channel): Red, Green, Blue, White
- RGBW+D (5-channel): Red, Green, Blue, White, Dimmer
- FULL (10-channel): Dimmer, Red, Green, Blue, White, White CCT Presets, Strobe, Auto Programs, Dimmer Speed Presets
- Fixture Setup: Logic Drive 2X (RDM, Webserver or Display), Art-RDM (DMX Workshop)
- Standalone Control: Yes, Logic Wall Con via Logic Drive 2X
Electrical System Specifications
- Electronic
- Input Voltage: 52-56 VDC
- Power and Current:
- Power Linking: 2 units per port via POE++, IEEE 802.3 bt, type 4
- Power Supply: POE++, IEEE 802.3 bt, type 4, class 8 (via Logic Drive 2X)
- Recommended Power Cable: Belden 2413F, 2412F
- Required Cable Specifications: Cable type: CAT6/A, Shielded, Conductor Diameter: ≥23 AWG (≥0.5733 mm), Conductor Material: Solid bare copper wire (stranded not supported), Cable plug: RJ45, CAT6/A, Shielded, Cable Termination: T568B standard
- Total Max Cable Length: Drive to first fixture: ≤100 m / 328 ft, Drive to last fixture: ≤140 m / 460 ft, First fixture to last fixture: ≤40 m / 131 ft
Thermal Specifications
- BTU Hour: 128
- Cooling: Convection
- Maximum Surface Temperature: 158 °F (70 °C)
- Minimum Distance To Flammable Surface: 11.8 in (0.3 m)
- Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Regulatory & Voluntary Qualification
- Canadian Safety: CSA-C22.2 No. 250.2
- Certification Listings: CE/MET/FCC/RoHS
- Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
- Environment Locations: Dry
- Installation Orientation: Any
- US Safety: UL 2108, UL 1598A
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Accessories
- Included: Very wide filter
- Optional: RDM2GO
- Required: Logic Drive 2X
Order Code
- Logic Graze-large length-4ft / 1219mm: LOGICGZL
- Logic Drive 2X: LOGICDRIVE2X
- Logic Wall Controller: LOGICWALLCON
