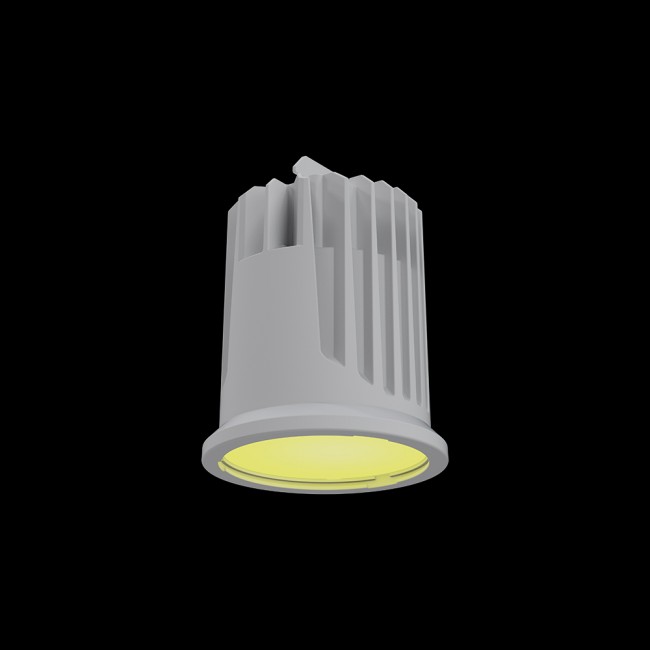

Chauvet Logic AR111 Downlight-small
Light Source and Optical Specifications
- Light Source: 1 LED (quad-color RGBW) 20 W, (8.75 A)
- Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
- Installed Optics: Medium FIlter
- Included Optics: Wide Filter
- Beam Angle: Open Optics: 7.3°, Medium Filter: 49.1°, Medium Filter With Honeycomb: 39.9°, Wide Filter: 57.2°, Wide Filter With Honeycomb: 43.7°
- Field Angle: Open Optics: 16.8°, Medium Filter: 93.7°, Medium Filter With Honeycomb: 75.4°, Wide Filter: 106.3°, Wide Filter With Honeycomb: 84.7 °
- Cutoff Angle: Open Optics: 29.5°, Medium Filter: 123°, Medium Filter With Honeycomb: 95.2°, Wide Filter: 133.6°, Wide Filter With Honeycomb: 103°
- Lumens: Open Optics: 729, Medium Filter: 562, Medium Filter With Honeycomb Filter: 339, Wide Filter: 550, Wide Filter With Honeycomb: 321
- Iluminance: Open Optics: 768 lux @ 5 m, Medium Filter: 26 lux @ 5 m, Medium Filter With Honeycomb: 24 lux @ 5 m, Wide Filter: 20 lux @ 5 m, Wide Filter With Honeycomb: 18 lux @ 5 m
- Efficacy At Full: Open Optics: 26 lm / W, Medium Optics: 20 lm / W, Medium Filter With Honeycomb: 13 lm / W, Wide Filter: 21 lm / W, Wide Filter With Honeycomb: 11 lm / W
- Color Temperature Presets: 1800K - 10000K
Construction & Physical Specifications
- Dimensions: 4.35 x 4.35 x 5.73 in (110.62 x 110.62 x 145.58 mm)
- Fixture Color: White
- Housing Material: Aluminum (ADC12)
- Lens Cover: Frosted polycarbonate
- Mounting Options: Logic AR111 Trim Ring, Logic AR111 Mounting Kit
- Weight: 1.67 lb (0.76 kg)
Control Specifications
- Operating Modes: Selectable personalities, via Logic Drive 2X
- Personalities:
- Red (1-channel): Red
- Green (1-channel): Green
- Blue (1-channel): Blue
- White (1-channel): White
- TW (2-channel): Dimmer, White CCT Preset
- RGB (3-channel): Red, Green, Blue
- RGBW (4-channel): Red, Green, Blue, White
- RGBW+D (5-channel): Red, Green, Blue, White, Dimmer
- FULL (10-channel): Dimmer, Red, Green, Blue, White, White CCT Presets, Strobe, Auto Programs, Dimmer Speed Presets
- Fixture Setup: Logic Drive 2X (RDM, Webserver or Display), Art-RDM (DMX Workshop)
- Standalone Control: Yes, Logic Wall Con via Logic Drive 2X
Electrical System Specifications
- Electronic
- Input Voltage: 52-56 VDC
- Power and Current:
- Power Linking: 5 units per port via POE++, IEEE 802.3 bt, type 4
- Power Supply: POE++, IEEE 802.3 bt, type 4, class 8 (via Logic Drive 2X)
- Recommended Power Cable: Belden 2413F, 2412F
- Required Cable Specifications: Cable type: CAT6/A, Shielded, Conductor Diameter: ≥23 AWG (≥0.5733 mm), Conductor Material: Solid Bare Copper Wire (stranded not supported), Cable plug: RJ45, CAT6/A, Shielded, Cable Terminator: T568B standard
- Total Max Cable Length: Drive to first fixture: ≤100 m / 328 ft, Drive to last fixture: ≤140 m / 460 ft, First fixture to last fixture: ≤40 m / 131 ft
Thermal Specifications
- BTU Hour: 52.8
- Cooling: Convection
- Maximum Surface Temperature: 158 °F (70 °C)
- Minimum Distance To Flammable Surface: 11.8 in (0.3 m)
- Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Regulatory & Voluntary Qualification
- Canadian Safety: CSA-C22.2 No. 250.2
- Certification Listings: CE/MET/FCC/RoHS
- City of Chicago Electric Code Safety: Chicago Plenum (CCEA), Section 18-27-300.22(c)(2)
- Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
- Environment Locations: Dry
- Installation Orientation: Any
- US Safety: UL 2108, UL 1598A
- Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Accessories
- Included: Wide filter, Recessed lighting hi-hat mounting bracket, Hi-hat Trim Ring alignment bracket, Pendant hanging bracket
- Optional: Logic AR111 Honeycomb filter, Logic AR111 Trim Ring (white), Logic AR111 Mounting Kit (for Wall Mount, Ceiling Mount, and hanging Pendant), RDM2GO
- Required: Logic Drive 2X
Order Code
- Logic AR111 Downlight-small: LOGICAR111DNS
- Logic Drive 2X: LOGICDRIVE2X
- Logic AR111 Honeycomb Filter: LOGICAR111HF
- Logic AR111 Trim Ring: LOGICAR111TRIM
- Logic Wall Controller: LOGICWALLCON
