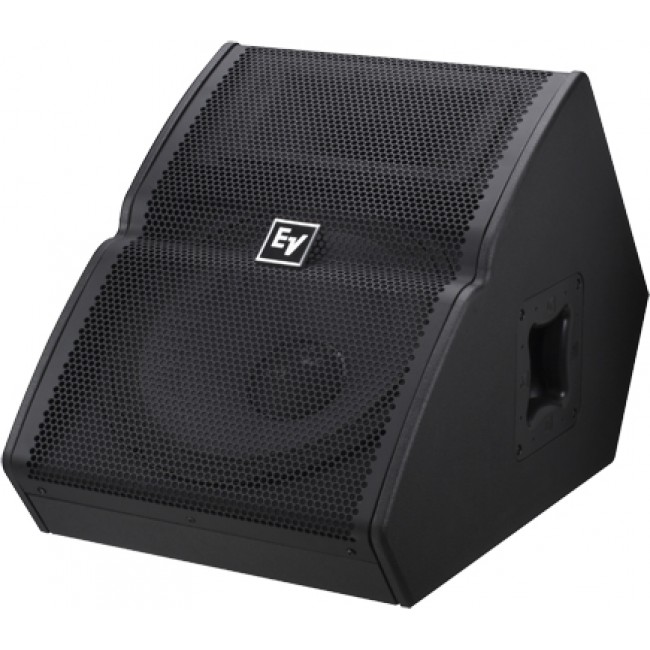

EV TX1152FM 1 x 15

EV TX1152FM 1 x 15

Home > Sound > Speakers > Luidsprekers > EV TX1152FM 1 x 15
0 beoordeling(en). 0 beoordeling(en).
€1.259,66
Aantal:
-
+
Bestellen
Merk: Electro Voice
Model: EVF01U302278
Beschikbaarheid: Niet op voorraad

TX1152FM

15" passive floor monitor

  • Two-way, high-output design
  • Vented LF enclosure
  • Neutrik Speakon paralleled pass-through connectors
  • Two integrated handles
  • Ideal for small-to-medium stages
  • Signal Synchronized Transducers for woofer/tweeter alignment
  • Ultra low-distortion SMX2151 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90º H x 50º V horn
  • Integrated 24 dB/octave crossover with HF protection
  • 100 dB sensitivity, 133 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Black EVCoat finish

Our Tour-X floor monitors are designed to complement all full-range cabinets in the family with common voicing.



Specifications

Frequency Range (-10 dB) 45 - 20000
Flying No
Minimum Impedance 6.2
Nominal Impedance (Passive) 8
HF Transducer DH3
Speaker Type Monitor

Specifications
Woofer Size 15
Powered or Passive Passive
Frequency Response (-3 dB)¹ 65 - 20000
Max. SPL/1m (calc)² 133
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 50
LF Transducer SMX2151
System Power Handling (Continuous/Program/Peak) 500
Power Rating 2000
Rotatable Horn No
Crossover Frequency 1750
Enclosure Material Plywood and MDF with EVCOAT
Sensitivity 1 W/1 m 100
Available Color Black
Height 475
Width 439
Recommended High-Pass Frequency 45
Depth 655
Internal Crossover Yes
Weight Net 23.5
Family Tour X
Input Connections Parallel Neutrik® NL4
