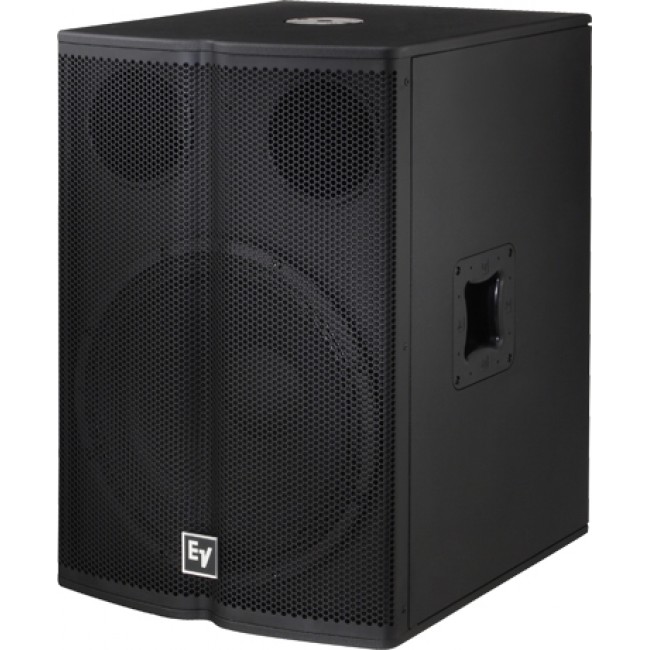

TX1181

18" passive subwoofer

  • High-power LF supplement to TX1122 and TX1152
  • High-excursion EVS-18S woofer
  • 6 dB/octave low-pass filter for parallel connection without added amp
  • 100 dB sensitivity, 132 dB max SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Top-side socket for speaker pole
  • Braced plywood/MDF enclosure
  • Black EVCoat finish

Specifications

Frequency Range (-10 dB) 45 - 700
Flying No
Minimum Impedance 7.5
Nominal Impedance (Passive) 8
Speaker Type Subwoofer
Woofer Size 18

Specifications
Powered or Passive Passive
Frequency Response (-3 dB)¹ 50 - 160
Max. SPL/1m (calc)² 132
LF Transducer 18-inch EVS18S
System Power Handling (Continuous/Program/Peak) 500//2000
Power Rating 2000
Enclosure Material Plywood and MDF with EVCOAT
Sensitivity 1 W/1 m 100
Available Color Black
Height 769
Width 508
Recommended High-Pass Frequency 30
Depth 591
Internal Crossover Low-pass filter
Weight Net 33.8
Family Tour X
Input Connections Parallel Neutrik® NL4
