EV TX2152 2 x 15

EV TX2152 2 x 15

Home > Sound > Speakers > Luidsprekers > EV TX2152 2 x 15
0 beoordeling(en). 0 beoordeling(en).
€1.797,48
Aantal:
-
+
Bestellen
Merk: Electro Voice
Model: EVF01U302274
Beschikbaarheid: Niet op voorraad

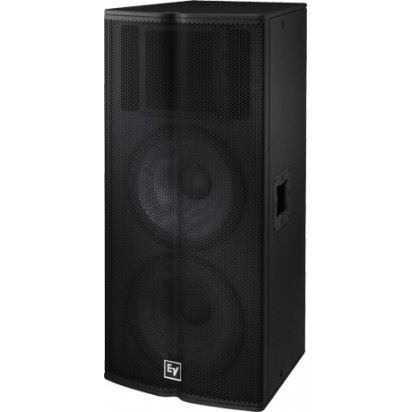

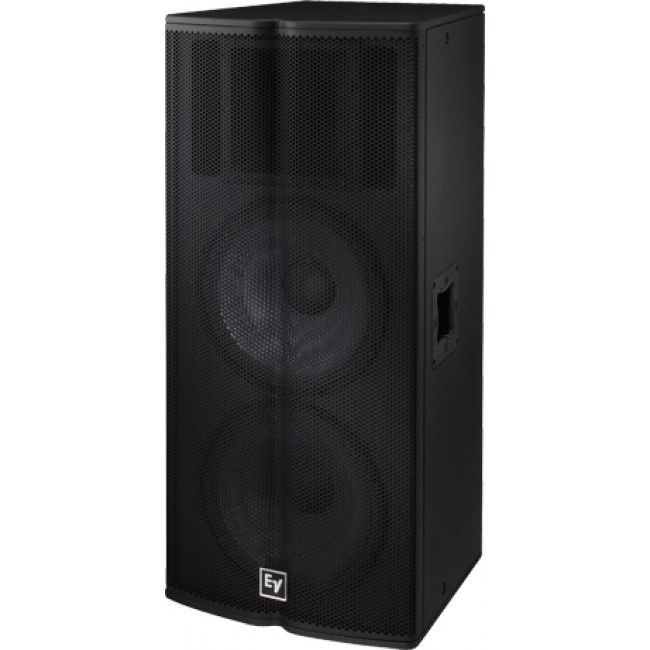

TX2152

Dual 15" 2‑way passive full‑range loudspeaker

  • Very high SPL with smooth response
  • Ideal as mains for small-to-medium clubs
  • Excellent pattern control for medium throw use
  • Dual SMX2151 woofers with fully symmetric drive
  • 2-inch ND2 neodymium HF compression driver
  • Rotatable Constant-directivity 60º x 40º horn
  • Advanced 6th-order crossover with HF protection
  • 103 dB sensitivity, 139 dB maximum SPL
  • Power handling: 1000 W continuous, 4000 W peak
  • Internally braced trapezoidal plywood/MDF enclosure
  • Six M10 threaded suspension points
  • Black EVCoat finish

Specifications

Frequency Range (-10 dB) 50 - 18000
Suspension (6) 3/8-inch threaded inserts
Flying Yes
Minimum Impedance 3.1
Nominal Impedance (Passive) 4
HF Transducer 2-inch ND2

Specifications
Speaker Type Full-Range
Woofer Size 15
Powered or Passive Passive
Frequency Response (-3 dB)¹ 55 - 13000
Max. SPL/1m (calc)² 139
Coverage (Nominal -6 dB) H 60
Coverage (Nominal -6 dB) V 40
LF Transducer Two 15-inch SMX2151
System Power Handling (Continuous/Program/Peak) 1000//4000
Power Rating 4000
Rotatable Horn Yes
Crossover Frequency 1750
Enclosure Material Plywood and MDF with EVCOAT
Available Color Black
Sensitivity 1 W/1 m 103
Height 1154
Recommended High-Pass Frequency 40
Width 508
Internal Crossover Yes
Depth 471
Weight Net 42.8
Family Tour X
Input Connections Parallel Neutrik® NL4
