EV TX1122 1 x 12

EV TX1122 1 x 12

Home > Sound > Speakers > Luidsprekers > EV TX1122 1 x 12
0 beoordeling(en). 0 beoordeling(en).
€965,55
Aantal:
-
+
Bestellen
Merk: Electro Voice
Model: EVF01U302272
Beschikbaarheid: Niet op voorraad

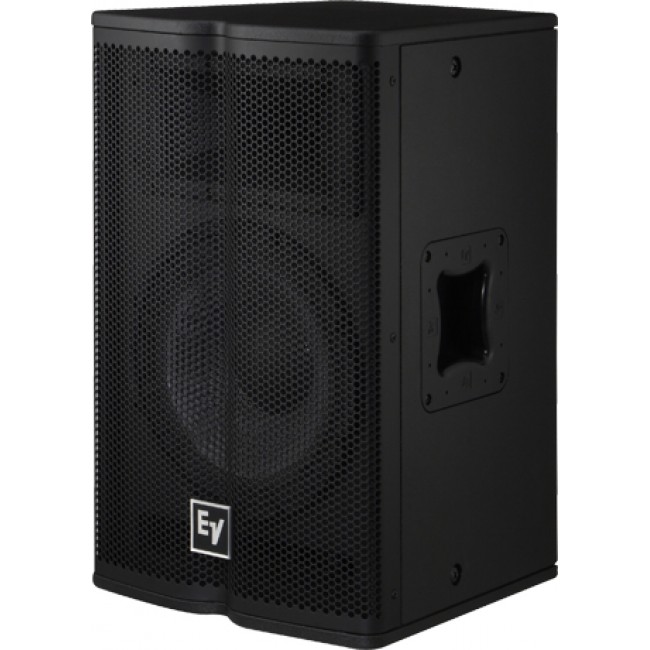

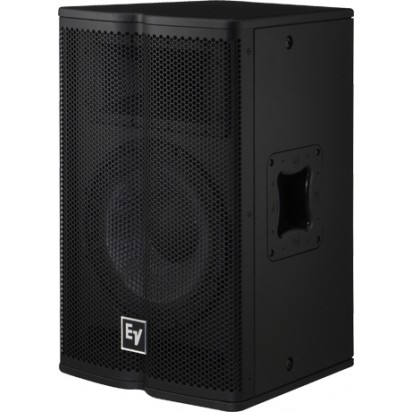

TX1122

12" passive loudspeaker

  • High-quality sound at high levels
  • Excellent pattern control for short-to-medium throw
  • Low-distortion SMX2120 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90º H x 50º V horn
  • Advanced 4th-order crossover with HF protection
  • 97 dB sensitivity, 130 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Lightweight trapezoidal plywood/MDF enclosure
  • Pole mount for use with subwoofer or stand
  • Six M10 threaded suspension points
  • Black EVCoat finish

Specifications

Frequency Range (-10 dB) 45 - 20000
Suspension (6) 3/8-inch threaded inserts
Flying Yes
Minimum Impedance 6.4
Nominal Impedance (Passive) 8
HF Transducer 1.25-inch DH3/2010A

Specifications
Speaker Type Full-Range
Woofer Size 12
Powered or Passive Passive
Frequency Response (-3 dB)¹ 70 - 20000
Max. SPL/1m (calc)² 132
Coverage (Nominal -6 dB) H 90
LF Transducer 12-inch SMX2121
Coverage (Nominal -6 dB) V 50
Power Rating 2000
System Power Handling (Continuous/Program/Peak) 500//2000
Rotatable Horn No
Crossover Frequency 1600
Enclosure Material Ply Wood and MDF with EVCOAT
Available Color Black
Sensitivity 1 W/1 m 97
Height 440
Width 364
Recommended High-Pass Frequency 45
Internal Crossover Yes
Depth 573
Weight Net 19.8
Family Tour X
Input Connections Parallel Neutrik® NL4
