EVID C12.2

0 beoordeling(en).

€563,40

Aantal:

Bestellen

Merk: Electro Voice
Model: EVF01U117807
Beschikbaarheid: Niet op voorraad

Omschrijving

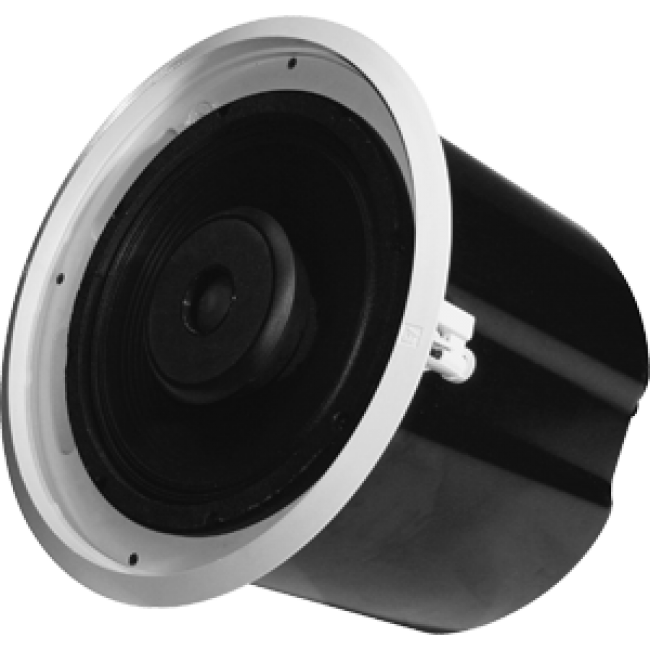

12" 2‑way coaxial ceiling loudspeaker

Full-range power for high ceilings, large spaces
High sensitivity, high power-handling
Integrated transformer with automatic saturation compensation for distortion free 70 V, 100 V, or 8 Ω use
Front-panel mode/wattage selector
White semi-gloss perforated grille
Heavy-gauge steel enclosure in black
3/8-inch threaded-rod mount points for open ceilings
Safe, easy installation with included tile bridge and mounting ring
Complete package, requires no additional accessories

Specifications

HF Transducer	1-inch (25 mm)
Speaker Type	Ported cabinet, internally damped two-way
Frequency Response (-3 dB)¹	65 - 20,000
Max. SPL/1m (calc)²	126
LF Transducer	12-inch EVID 920-8B
System Power Handling (Continuous/Program/Peak)	100
Specifications

Power Rating	64
Crossover Frequency	2000
Enclosure Material	Steel enclosure and UL94V-0 rated baffle and bezel
Grille	Powder-coated steel
Sensitivity 1 W/1 m	100
Available Color	White (paintable surface)
Height	333
Weight Net	12.3
Diameter (Max)	414
Transformer Taps (Transformer Version Only)	4 (70 V only), 8, 16, 32, 64 W ASC protected
Input Formats	8ω / 70V / 100V
Coverage (Nominal -6 dB)	90
Mounting Systems	Integrated 3-point toggle anchors

Tags: EVID C12.2
