EVID C4.2

EVID C4.2

0 beoordeling(en).

0 beoordeling(en).

€298,20

Aantal:

-

+

Bestellen

Merk: Electro Voice
Model: EVF01U117585
Beschikbaarheid: Niet op voorraad

Omschrijving

EVID C4.2

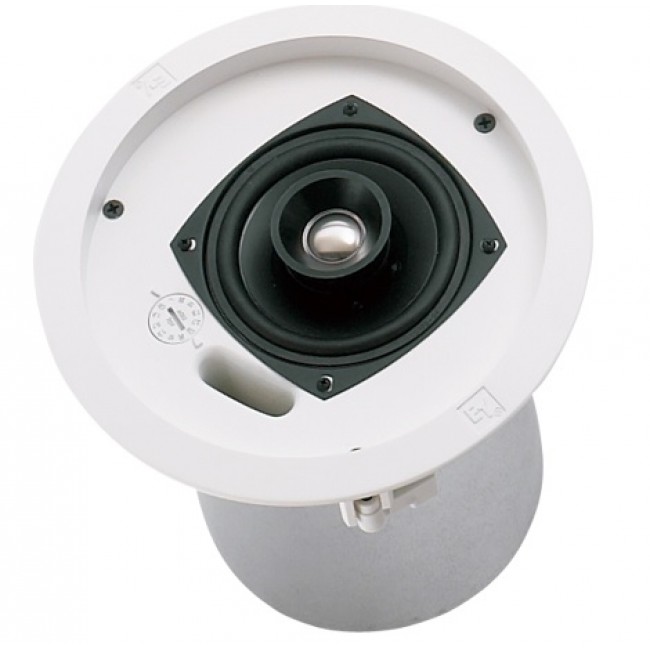

4" 2‑way coaxial ceiling loudspeaker

Designed for air-handling spaces
Ported enclosure for extended bass response
Waveguide-coupled 0.75-inch titanium-coated tweeter
Full-bandwidth overload protection
Integrated transformer for 70 V, 100 V, or 8 Ω use
Front-panel mode/wattage selector
Safe, easy installation with included tile bridge and mounting ring
White semi-gloss perforated grille
Complete package, requires no additional accessories

Specifications

Frequency Range (-10 dB)	65 - 20000
Weatherized	No
HF Transducer	0.75-inch (19 mm) Ti Mylar Laminate Dome
Speaker Type	Ported cabinet, internally damped, two-way
LF Transducer	4-inch polypropylene cone
System Power Handling (Continuous/Program/Peak)	50
Specifications

Power Rating	200
Enclosure Material	Steel enclosure and UL94V-0 rated baffle and bezel
Grille	Powder-coated steel
Sensitivity 1 W/1 m	86
Available Color	White (paintable surface)
Height	176
Weight Net	2.7
Chassis Size	101.6
Diameter (Max)	181
Transformer Taps (Transformer Version Only)	(1.88 - 70 V only), 3.75, 7.5, 15, 30
Transformer	Yes
Input Formats	8ω, 70 V, 100 V
Coverage (Nominal -6 dB)	130
Mounting Systems	Integrated 3-point toggle anchors
Regulatory Approvals	UL1480; UL2043

Tags: EVID C4.2
