Dateq DA-801R/6

Dateq DA-801R/6

0 beoordeling(en). 0 beoordeling(en).
€179,00
Aantal:
-
+
Merk: Dateq
Model: DTDA-801R/6
Beschikbaarheid: Niet op voorraad

Dateq DA-801R/6

DA-800 System

Next generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

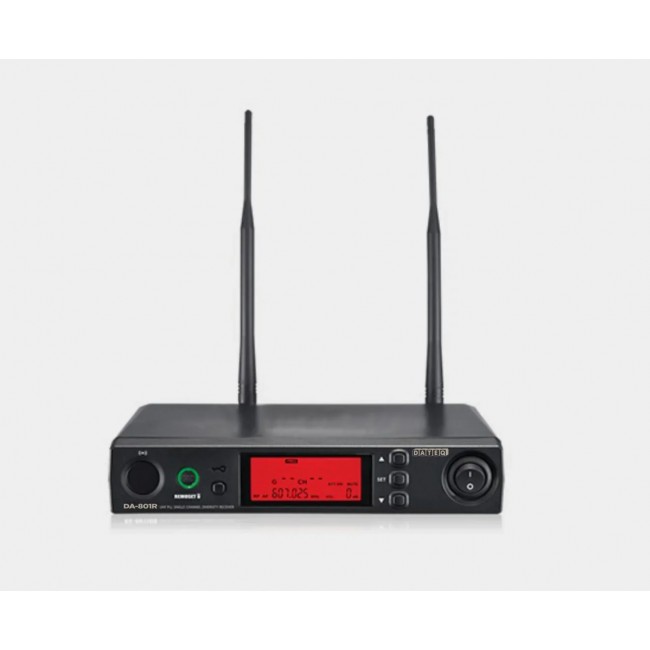

DA-801R
Frequency Setting REMOSET U
Receiving Mode Antenna Diversity
Bandwidth 36MHz, 614-650MHz
S/N Ratio >105dB(A)
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display LCD
Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF
Meter, Frequency Scan, Audio Level, Volume
Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
ψ6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) ˴ -24dBV(MIC)
Audio Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced.
Power Supply DC12~15V/300mA
Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D)
