EV ETX-15SP 15

EV ETX-15SP 15

Home > Speakers > Luidsprekers > EV ETX-15SP 15
0 beoordeling(en). 0 beoordeling(en).
€1.814,29
Aantal:
-
+
Bestellen
Merk: Electro Voice
Model: EVF01U396744
Beschikbaarheid: Niet op voorraad

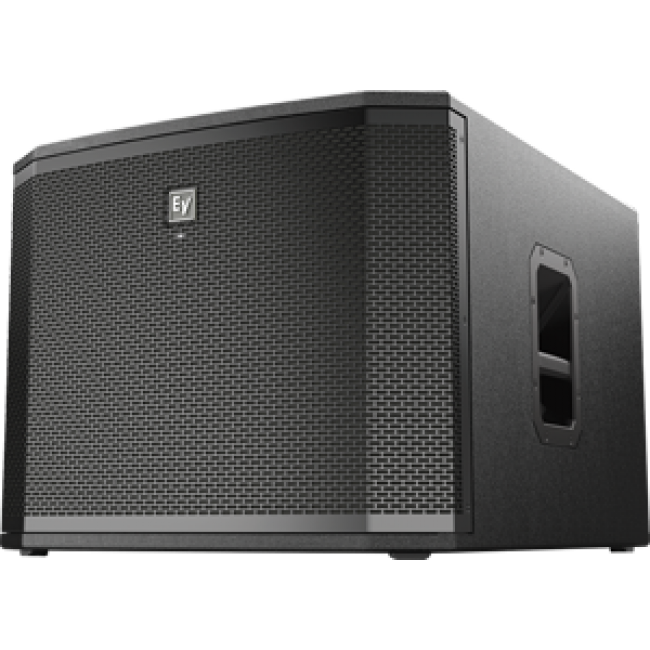

ETX-15SP

15" powered subwoofer

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support
  • 15-inch DVX woofer for maximum punch
  • 1800 W Class-D power amplifier with integrated FIR-Drive DSP
  • 134 dB peak SPL
  • Special DSP preset for true cardioid performance across the full operating bandwidth
  • Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models
  • Removable casters



Specifications

Frequency Response (-3 dB) 37 Hz - 150 Hz¹
Frequency Range (-10 dB) 32 Hz - 180 Hz¹
Maximum SPL 134 dB peak²

Specifications
Power Rating 1800 W
LF Transducer DVX3159A 380 mm (15 in)
Low Pass Frequency Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz
Connectors (2) XLR/TRS Combo Jack and (2) XLR link Output
Enclosure 18mm Plywood with EVCoat
Grille 16AWG steel with powdercoat
Dimensions (H x W x D) 471 mm x 576 mm x 825 mm (19 in x 23 in x 32 in)
Dimensions (H x W x D) without casters ,471 mm x 576 mm x 692 mm (19 in x 23 in x 27 in)
Net Weight 41.7 kg (91.9 lb)
Shipping Weight 46.8 kg (103.2 lb)
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Half space measurement using the music DSP preset and 150 Hz low pass.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
