EV ETX-35P 15

EV ETX-35P 15

Home > Speakers > Luidsprekers > EV ETX-35P 15
0 beoordeling(en). 0 beoordeling(en).
€1.915,13
Aantal:
-
+
Bestellen
Merk: Electro Voice
Model: EVF01U396743
Beschikbaarheid: Niet op voorraad

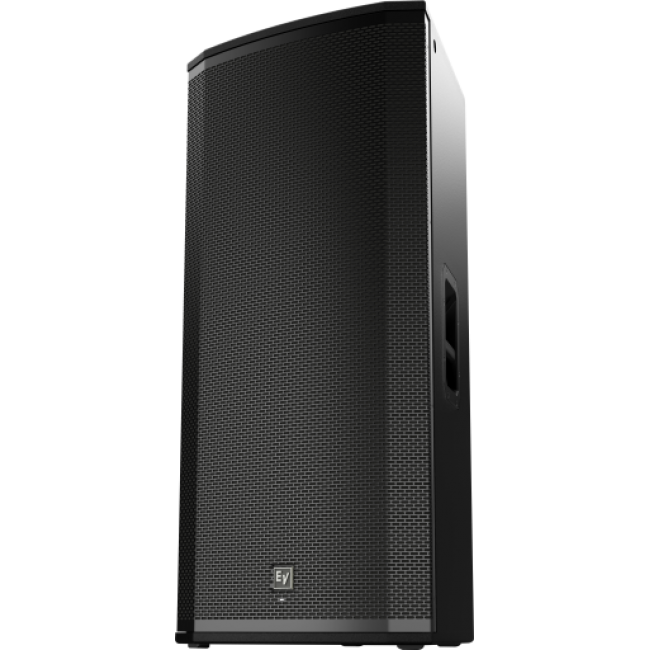

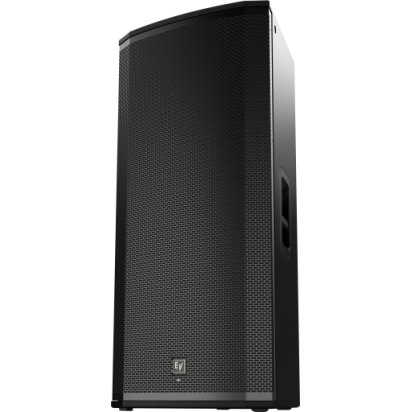

ETX-35P

15" powered 3‑way loudspeaker

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support
  • 15-inch LF SMX woofer
  • 6.5-inch MF driver
  • 1.25-inch HF titanium compression driver
  • 2000 W Class-D power amplifier with integrated FIR-Drive DSP
  • 136 dB peak SPL



Specifications

Frequency Response (-3 dB) 48 Hz - 20 kHz¹
Frequency Range (-10 dB) 38 Hz - 20 kHz¹
Maximum SPL 136 dB peak²

Specifications
Coverage (H x V) 60° x 40°
Power Rating 2000 W
LF Transducer SMX2151 380 mm (15 in)
MB Transducer EVS-6C 6.5-in mid-bass driver
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 700 Hz, 2900 Hz
Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18mm Plywood with EVCoat
Grille 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Dimensions (H x W x D) 1023 mm x 469 mm x 426 mm (40 in x 18 in x 17 in)
Net Weight 38.2 kg (84.2 lb)
Shipping Weight 42.8 kg (94.4 lb)
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadbandpink noise at maximum output.
³ Current rating is 1/8 power.
