EV ETX-15P 15

EV ETX-15P 15

Home > Speakers > Luidsprekers > EV ETX-15P 15
0 beoordeling(en). 0 beoordeling(en).
€1.757,15
Aantal:
-
+
Bestellen
Merk: Electro Voice
Model: EVF01U396742
Beschikbaarheid: Niet op voorraad

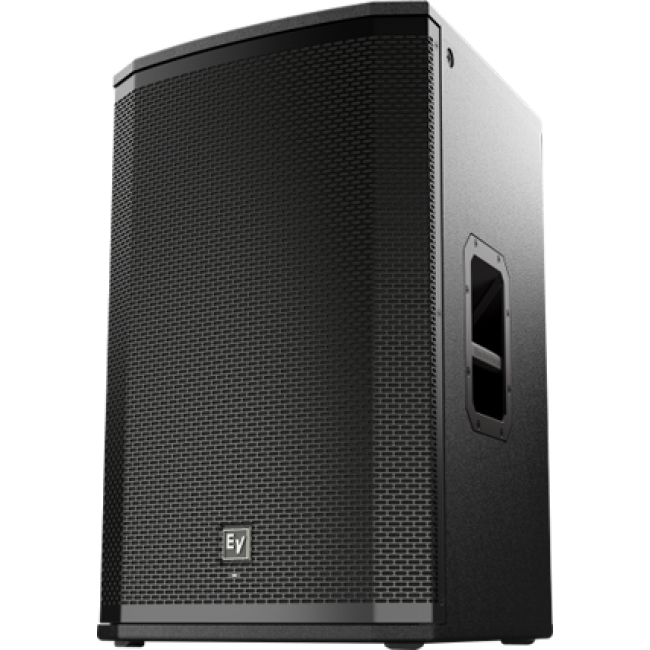

ETX-15P

15" powered loudspeaker

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support
  • 15-inch LF SMX woofer
  • 1.25-inch HF titanium compression driver
  • 2000 W Class-D power amplifier with integrated FIR-Drive DSP
  • 135 dB peak SPL



Specifications

Frequency Response (-3 dB) 48 Hz – 20 kHz1
Frequency Range (-10 dB) 40 Hz – 20 kHz1
Maximum SPL 135 dB peak2

Specifications
Coverage (H x V) 90° x 60°
Power Rating 2000 W
LF Transducer SMX2150 380 mm (15 in)
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 1500 Hz
Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18mm Plywood with EVCoat
Grille 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Dimensions (H x W x D) 691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in)
Net Weight 27.7 kg (61.1 lb)
Shipping Weight 31.5 kg (69.5 lb)
Power Consumption 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3
1 Full space measurement using the music DSP preset.
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 Current rating is 1/8 power.
