EV ETX-12P 12

0 beoordeling(en).

€1.612,61

Aantal:

Bestellen

Merk: Electro Voice
Model: EVF01U396737
Beschikbaarheid: Niet op voorraad

Omschrijving

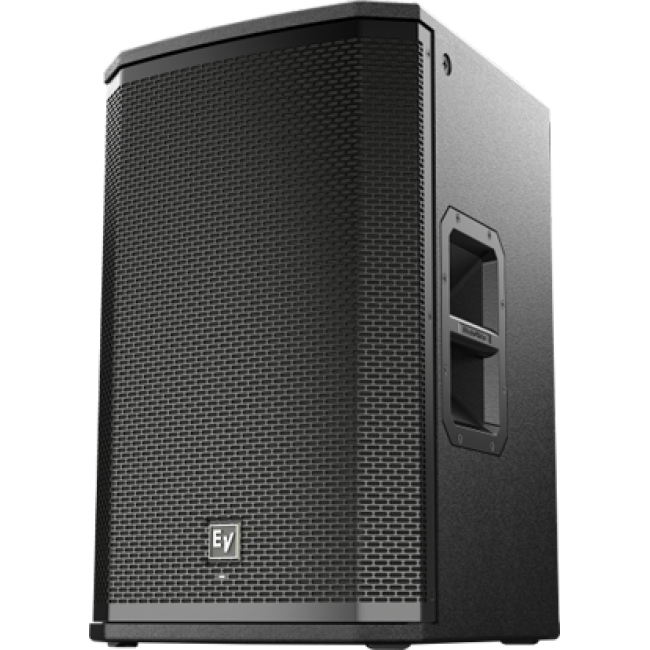

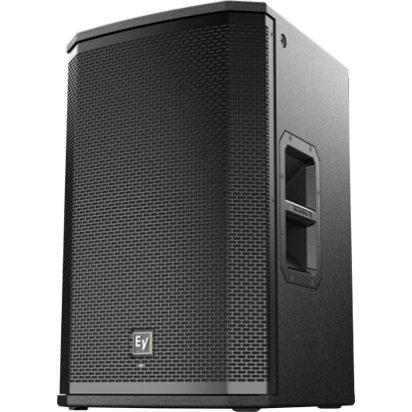

ETX-12P

12" powered loudspeaker

Summary & Images Specs Where to buy Downloads & Support

12-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL

Specifications

Frequency Response (-3 dB)	55 Hz - 20 kHz¹
Frequency Range (-10 dB)	43 Hz - 20 kHz¹
Maximum SPL	135 dB peak²
Specifications

Coverage (H x V)	90° x 60°
Power Rating	2000 W
LF Transducer	SMX2120 300 mm (12 in)
HF Transducer	DH3-B 1.25-in titanium compression driver
Crossover Frequency	1600 Hz
Connectors	(2) XLR/TRS combo jack and (1) XLR link output
Enclosure	18mm Plywood with EVCoat
Grille	16AWG steel with powdercoat
Suspension	(8) M10 suspension points
Dimensions (H x W x D)	613 mm x 381 mm x 400 mm (24 in x 15 in x 16 in)
Net Weight	23.6 kg (52.0 lb)
Shipping Weight	26.8 kg (59.1 lb)
Power Consumption	100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³

¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
