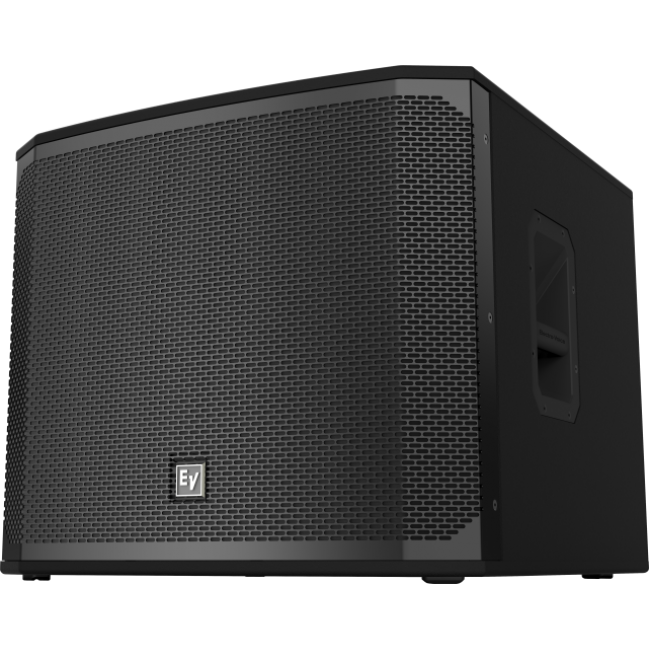

EV EKX-18S EKX-18S Passive 18

0 beoordeling(en).

€999,16

Aantal:

Bestellen

Merk: Electro Voice
Model: EVF01U303367
Beschikbaarheid: Niet op voorraad

Omschrijving

EKX-18S

Summary & Images Specs Where to buy Downloads & Support

1600 W (peak), 134 dB peak SPL on the EKX-18S utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar (two bars on the EKX-18S).
M20 threaded pole mount plate.

Specifications

Frequency Range (-10 dB)	35 Hz - 300kHz (Half Space Measurement)
Minimum Impedance	7.0Ω
Speaker Type	Subwoofer
Specifications

Woofer Size	18inch
Powered or Passive	Passive
Frequency Response (-3 dB)¹	50 Hz - 100Hz (Half Space Measurement)
Max. SPL/1m (calc)²	134dB
LF Transducer	EVS-18C 457 mm (18 in)
Power Rating	1600W
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Grille	18 AWG steel with powdercoat
Height	20.47" (520mm)
Recommended High-Pass Frequency	30Hz
Width	23.86" (606mm)
Depth	24.09" (612mm)
Weight Net	70.11lbs (31.8kg)
Shipping Weight	88.41lbs (40.1kg)
Family	EKX
Maximum SPL	134dB
Passive Power Handling	1600W peak
Nominal Impedance	8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)	96dB
Power Handling (Continuous / Peak)	400 W/1600W
