EV EKX-15S EKX-15S Passive 15

0 beoordeling(en).

€898,32

Aantal:

Bestellen

Merk: Electro Voice
Model: EVF01U303366
Beschikbaarheid: Niet op voorraad

Omschrijving

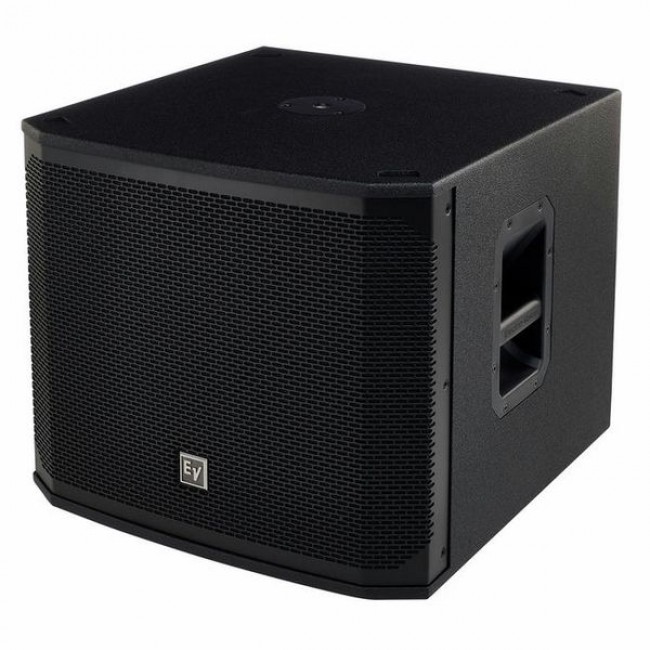

EKX-15S

Summary & Images Specs Where to buy Downloads & Support

1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar (two bars on the EKX-18S).
M20 threaded pole mount plate.

Specifications

Frequency Range (-10 dB)	40 Hz - 300kHz (Half Space Measurement)
Minimum Impedance	7.5Ω
Speaker Type	Subwoofer
Specifications

Woofer Size	15inch
Powered or Passive	Passive
Frequency Response (-3 dB)¹	60 Hz - 100Hz (Half Space Measurement)
Max. SPL/1m (calc)²	133dB
LF Transducer	EVS-15C 381 mm (15 in)
Power Rating	1600W
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Grille	18 AWG steel with powdercoat
Height	17.91" (455mm)
Width	20.87" (530mm)
Recommended High-Pass Frequency	35Hz
Depth	21.69" (551mm)
Weight Net	54.9lbs (24.9kg)
Shipping Weight	69lbs (31.3kg)
Family	EKX
Nominal Impedance	8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)	95dB
Power Handling (Continuous / Peak)	400 W/1600W
Maximum SPL	133dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Passive Power Handling	1600W peak

Videos
