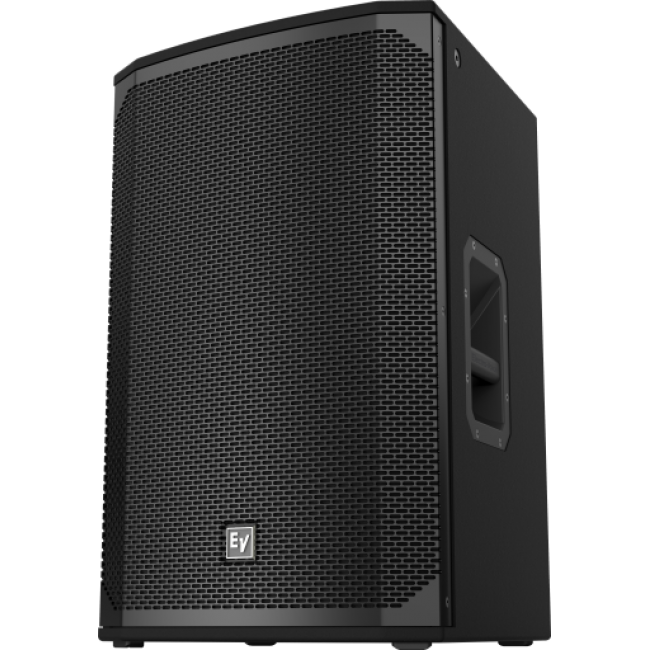

EV EKX-15 EKX-15 Passive 15

0 beoordeling(en).

€839,50

Aantal:

Bestellen

Merk: Electro Voice
Model: EVF01U303365
Beschikbaarheid: Niet op voorraad

Omschrijving

EKX-15

Summary & Images Specs Where to buy Downloads & Support

EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Specifications

Frequency Range (-10 dB)	50 Hz - 20 kkHz (Full Space Measurement)
Suspension	(8) M10 threaded mounting points
Minimum Impedance	7.2Ω
Specifications

HF Transducer	DH-1M 1-inch titanium compression driver
Speaker Type	Full-Range, two way
Woofer Size	15inch
Powered or Passive	Passive
Frequency Response (-3 dB)¹	75 Hz - 18 kHz (Full Space Measurement)
Max. SPL/1m (calc)²	132dB
Coverage (Nominal -6 dB) H	90°
Coverage (Nominal -6 dB) V	60°
LF Transducer	EVS-15M 381 mm (15 in)
Power Rating	1600W
Crossover Frequency	1.6 kHz
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Grille	18 AWG steel with powdercoat
Height	26.97" (685mm)
Recommended High-Pass Frequency	50Hz
Width	17.01" (432mm)
Depth	16.89" (429mm)
Weight Net	51.15lbs (23.2kg)
Shipping Weight	62.17lbs (28.2kg)
Family	EKX
Power Handling (Continuous / Peak)	400 W/1600W
Maximum SPL	132dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Passive Power Handling	1600W peak
Nominal Impedance	8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)	96dB (Full Space Measurement)

Videos
