Dynacord TS 200W 2 x 6

Dynacord TS 200W 2 x 6

0 beoordeling(en). 0 beoordeling(en).
€1.241,40
Aantal:
-
+
Merk: Dynacord
Model: EVF01U283238
Beschikbaarheid: Niet op voorraad

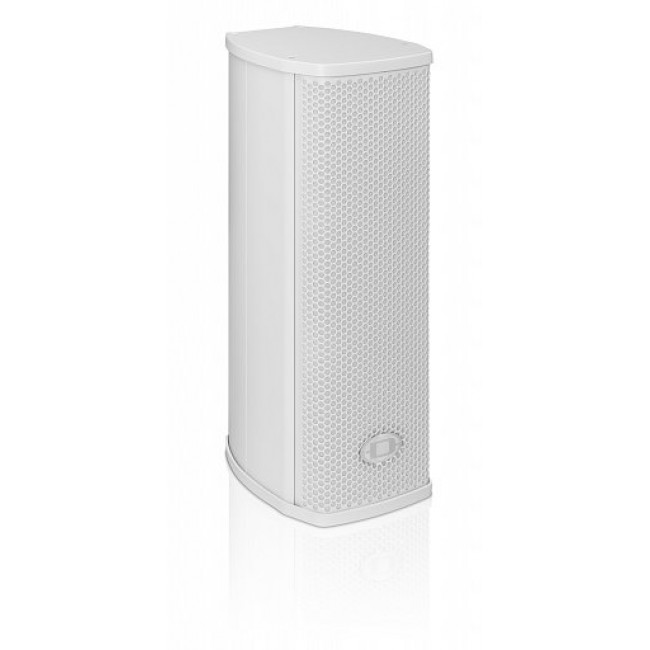

TS 200W

2 x 6" / 1" full‑range cabinet; white


Summary & Images Specs Downloads & Support
  • 2x 6" Passive High power multi-functional 2-way cabinet, White
  • 300 Watts / 16 Ω
  •
  • DH-3 Titanium diaphragm driver
  • Rotatable CAD optimized 90 x 40 CD horn
  • Neodymium DND 6130-16 woofer


TS 200W is an extremely compact, two‑way high‑performance loudspeaker, with a nominal power handling capacity of 300W / RMS, suitable for a multitude of highly demanding tasks. Its high SPL and precisely controlled coverage pattern make it a prime candidate for tasks far more challenging than any you would associate with a box of its size. Whether deployed in mobile applications as a medium‑sized FOH system in combination with passive (e.g. SUB 18) or active (e.g. PowerSub 312 or PSD 215) subwoofers, or full‑range as a fill or delay in larger systems, the TS 200W displays its outstanding acoustic and mechanical performance to impressive effect.  In fact, the only area in which this box is deficient is weight: its weight of less than 10kg represents a dramatic advance in lightweight engineering in this class.

Specifications

Available Color White
Weight Net 10kg (22.05 lbs)
Passive Power Handling 1200W peak

Specifications

Component High Electro-Voice DH-3
Component LOW 2x DND 6130-16
Contacts full-range 1+, 1-
Contacts wired through 1+, 1-
Dimensions 199 x 513.5 x 239.5mm
Frequency range (-10 dB) 90–20000Hz
Grille Steel
Max. SPL/1m (calc) 128dB
Model 2x NEUTRIK speakON NL4
Coverage (Nominal -6 dB) H 90°
Nominal Coverage Angle 90° x 40°
Speaker Type Full-Range
Program power 600W
Rated power RMS 300W
Enclosure Material Aluminum
SPL 1 W/1 m 97dB
Suspension 8 x M6
Voice coil tracking protection Halogen
Nominal Impedance 8ΩΩ
X-Over Frequency 2200Hz
Power Rating 1200W
Powered/Passive Passive
Woofer Size 6mm (0.24")
Configuration Passive 2-Way
