Max. height 5.35m (17.5′)
Max. Load 250Kg (551 lb)
Safety ALS (Automatic Lock System)
Work surface 1.53 x 1.53m (5.02 x 5.02′)
Folded height 1.74m (5.7′)
Winch 900Kg
Adaptor 55mm (PSU-074 / PSA-02)
Weight 91Kg (200lb)

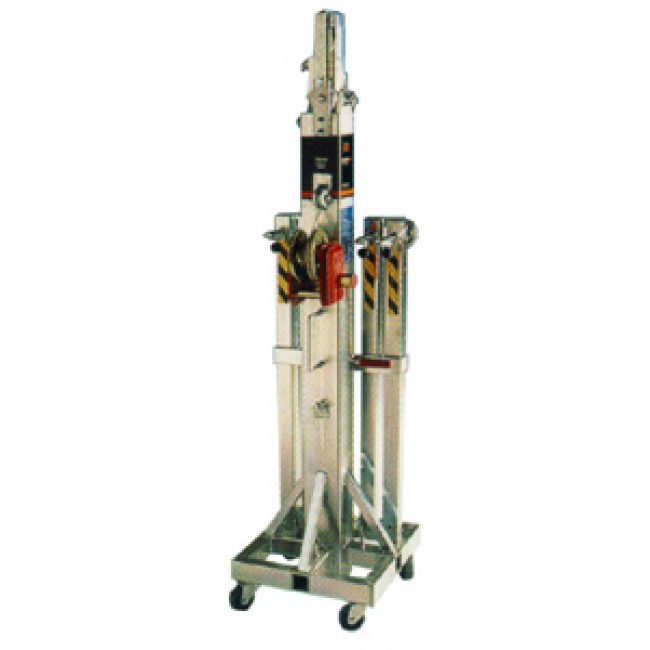

The TE-074 is a top-loading, telescopic lifter designed to lift a maximum weight of 250kg (551lb) to a maximum height of 5.35m (17.5ft)

Manufactured in Our factory, in Valencia (Spain) it is comprised of four premium grade steel masts finished in black, epoxy, powder coated paint for greater resistance to the elements for both indoor and outdoor use. Operated by an AL-KO winch with automatic brake and guided through our custom-made bearing pullies via a galvanized steel cable. Our patented ALS (Auto Lock Security) system ensures maximum safety. The lift is automatically locked at intermittent heights via the ALS bolt so that the lifter does not have to rely on the cable for security making it impossible for the load to fall.

The lifter is both easy to transport and store due to its compact steel base, with pockets for the outriggers, each with their own swivel leveller with non-slip rubber base. Four 360º first grade, durable castors are fitted easing the transport of the lifter. A spirit level is also located on the main mast for levelling orientation during set-up.

A number of accessories for the TE-074 are available and can be viewed below.

ACCESSORIES | BGV-C1 CERTIFICATE | CE CERTIFICATE |

DATA SHEET | USER MANUAL | VMB CATALOGUE
