Max. height 3.8m (12.5ft)
Max. Load 125kg (275 lb)
Safety ALS (Auto Lock Security)
Work surface 1.12 x 1.12m (3.7 x 3.7ft)
Folded height 1.26m (4.1ft)
Winch 450kg (990lb)
Adaptor 35mm (PSU-034/ PSU-06 / PSA-01)
Weight 21kg (47lb)

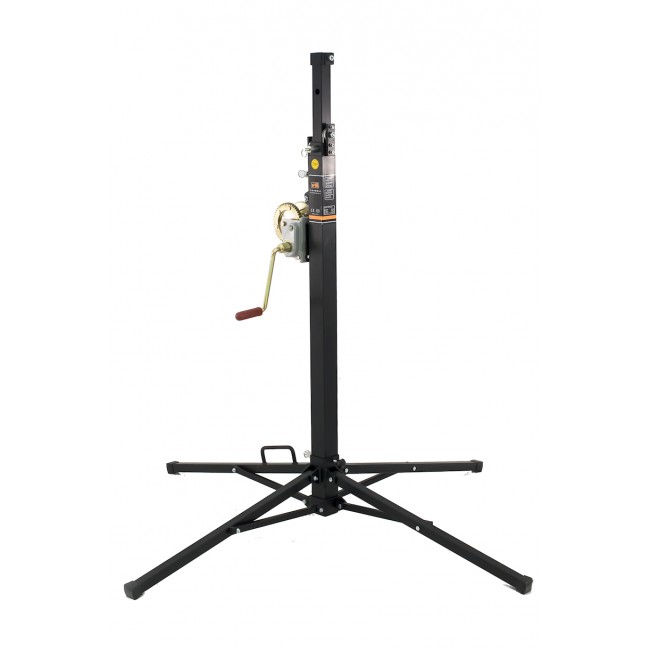

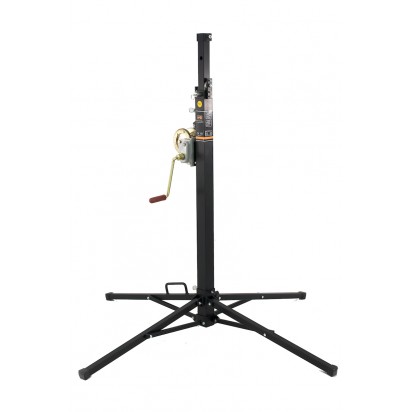

The TE-034 is a top-loading, telescopic lifter designed to lift a maximum weight of 125kg (275lb) to a maximum height of 3.8m (12.5ft)

Compact yet durable, this lightweight lifter is very easy to transport and small enough to fit the boot of a car. Manufactured in Our factory, in Valencia (Spain) it is comprised of three premium grade steel masts finished in black, epoxy, powder coated paint for greater resistance to the elements for both indoor and outdoor use. Operated by an AL-KO winch with automatic brake and guided through our custom-made bearing pullies via a galvanized steel cable. Our patented ALS (Auto Lock Security) system ensures maximum safety. The lift is automatically locked at intermittent heights via the ALS bolt so that the lifter does not have to rely on the cable for security making it impossible for the load to fall.

Four extendable legs with non-slip rubber feet enable the lift to be set up in three different positions. A handle is included to enable the lift to be carried by one person and a spirit level is also located on the main mast for levelling orientation during set-up.

A number of accessories for the TE-034 are available and can be viewed below.
