Max. height 3m (9.84ft)
Max. Load 100kg (220 lb)
Safety ALS (Auto Lock Security)
Work surface 1.36 x 1.57m (4.46 x 5.15ft)
Folded height 1.42m (4.66ft)
Winch 450kg (990 lb)
Adaptor 35mm (PSU-034/ PSU-06 / PSA-01)
Weight 15kg (33lb)

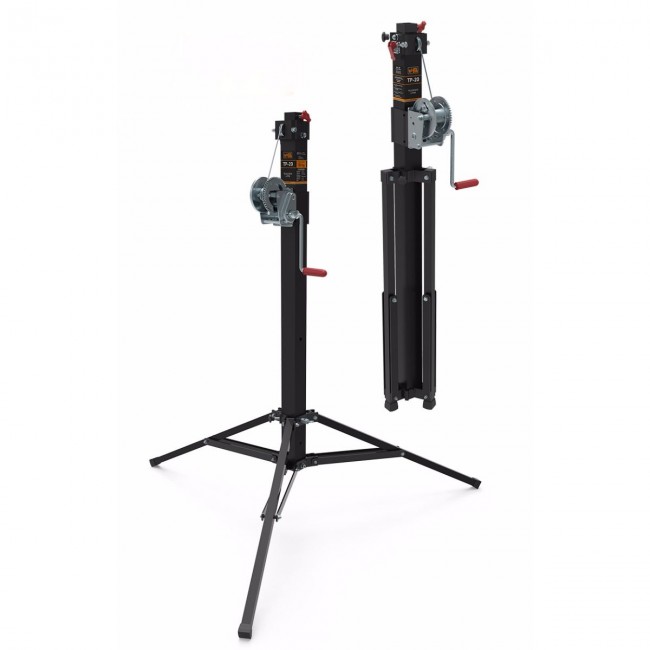

The TP-20 is a top-loading, telescopic lifter designed to lift a maximum weight of 100kg (220lb) to a maximum height of 3m (9.84ft)

Compact yet durable, this lightweight lifter is very easy to transport and small enough to fit the boot of a car. Manufactured in Our factory, in Valencia (Spain) it is comprised of three premium grade aluminium masts finished in black, epoxy, powder coated paint for greater resistance to the elements for both indoor and outdoor use. Operated by an AL-KO winch with automatic brake and guided through our custom-made bearing pullies via a galvanized steel cable. Our patented ALS (Auto Lock Security) system ensures maximum safety. The lift is automatically locked at intermittent heights via the ALS bolt so that the lifter does not have to rely on the cable for security making it impossible for the load to fall.

Three extendable legs with non-slip rubber feet enable the lift to be set up different positions.

A number of accessories for the TP-20 are available and can be viewed below.
