Max. height 5m (16.4′)
Max. Load 125Kg (275 lb)
Safety ALS (Automatic Lock System)
Work surface  1.43 x 1.43m (4.7 x 4.7′)
Folded height 1.9m (6.2′)
Winch 450Kg (990 lb)
Adaptor 35mm (PSU-06 / PSA-01)
Weight 32Kg (71lb)

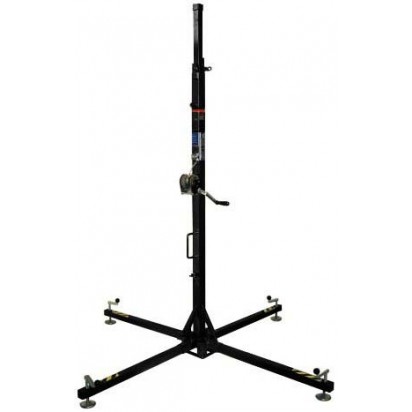

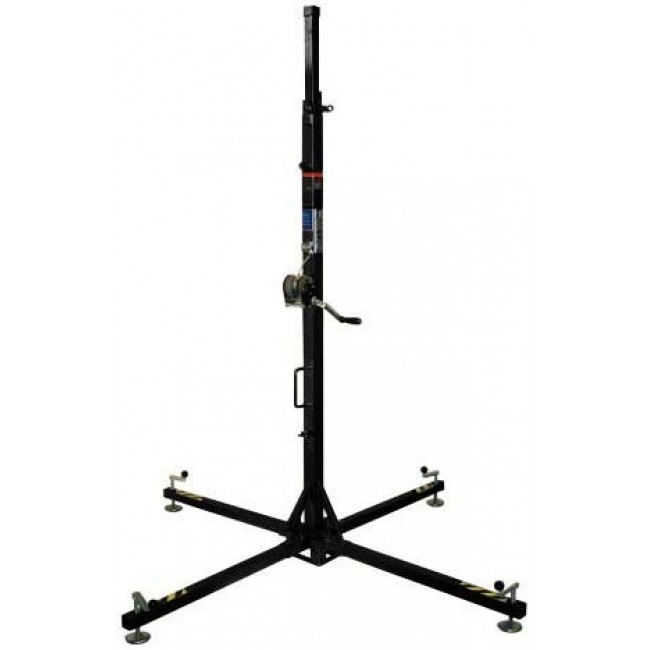

The TE-06 is a top-loading, telescopic lifter designed to lift a maximum weight of 125kg (275lb) to a maximum height of 5m (16.4ft)

Manufactured in Our factory, in Valencia (Spain) it is comprised of three premium grade steel masts finished in black, epoxy, powder coated paint for greater resistance to the elements for both indoor and outdoor use. Operated by an AL-KO winch with automatic brake and guided through our custom-made bearing pullies via a galvanized steel cable. Our patented ALS (Auto Lock Security) system ensures maximum safety. The lift is automatically locked at intermittent heights via the ALS bolt so that the lifter does not have to rely on the cable for security making it impossible for the load to fall.

2 fixed castors are located on the base to transport the lifter, whilst tilted. A spirit level is also located on the main mast for levelling orientation during set-up.

A number of accessories for the TE-06 are available and can be viewed below.
